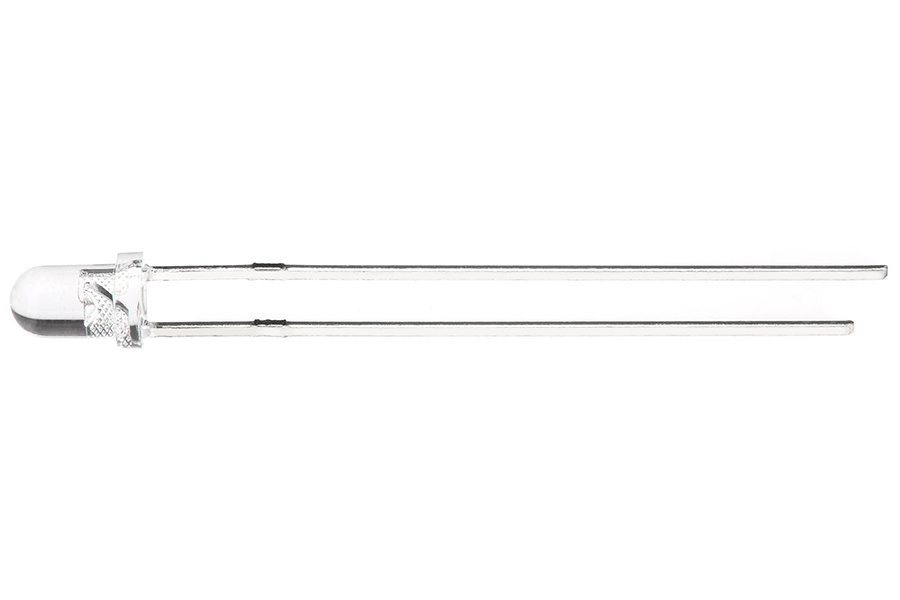

This yellow LED is designed for models, sign lighting, indicator lights, and other small projects. It has an output of 8,100mcd and a dominant wavelength of 592nm. The T1 through-hole 3mm LED has a clear lens and emits a 20掳 beam of illumination. It has a typical forward voltage of 2.0V at 20mA and a peak forward current of 100mA. Use of a resistor or other current-limiting device is crucial to prevent premature LED failure. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate. Price listed is per unit; however, bulk discounts are available and are automatically applied to your order.
Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 2.0V
LED Color: Yellow
LED Package: 3 mm (T-1)
Lens: Clear
Lumen: 0.8 Lumen
Maximum Forward Voltage: 2.4V
Millicandela: 8100mcd
Operating Temperature: -40~+85 掳C (-40~+185 掳F)
Peak Forward Current: 100mA
Power Dissipation: 60mW
Reverse Current: 10碌A
Reverse Voltage: 5V
Storage Temperature: -40~+85 掳C
Total Power Consumption: 0.04 Watts
Tube Diameter: T-1
Viewing Angle: 20 degree
Wavelength: 592 nm
Package Weight: 0.01oz (0kg)聽
Package Dimensions: 0.24" (1cm) x 0.16" (0cm) x 0.16" (0cm)
